Lecture 8 Registration to a template (Spatial Normalization)

8.1 Linear Registration

FSL’s FMRIB’s Linear Image Registration Tool (FLIRT) implements rigid and affine transformation to the the image

8.1.1 Read files

library(oro.nifti)

## oro.nifti 0.10.1

temp_dir = "Neurohacking_data/Template"
template_img = oro.nifti::readNIfTI(file.path(temp_dir, "MNI152_T1_1mm_brain.nii.gz"), reorient = FALSE)

fpath = "Neurohacking_data/kirby21/visit_1/113"
fname = "bet2-fast-113-01-MPRAGE"
bet2_fast_img = oro.nifti::readNIfTI(file.path(fpath, fname), reorient = FALSE)

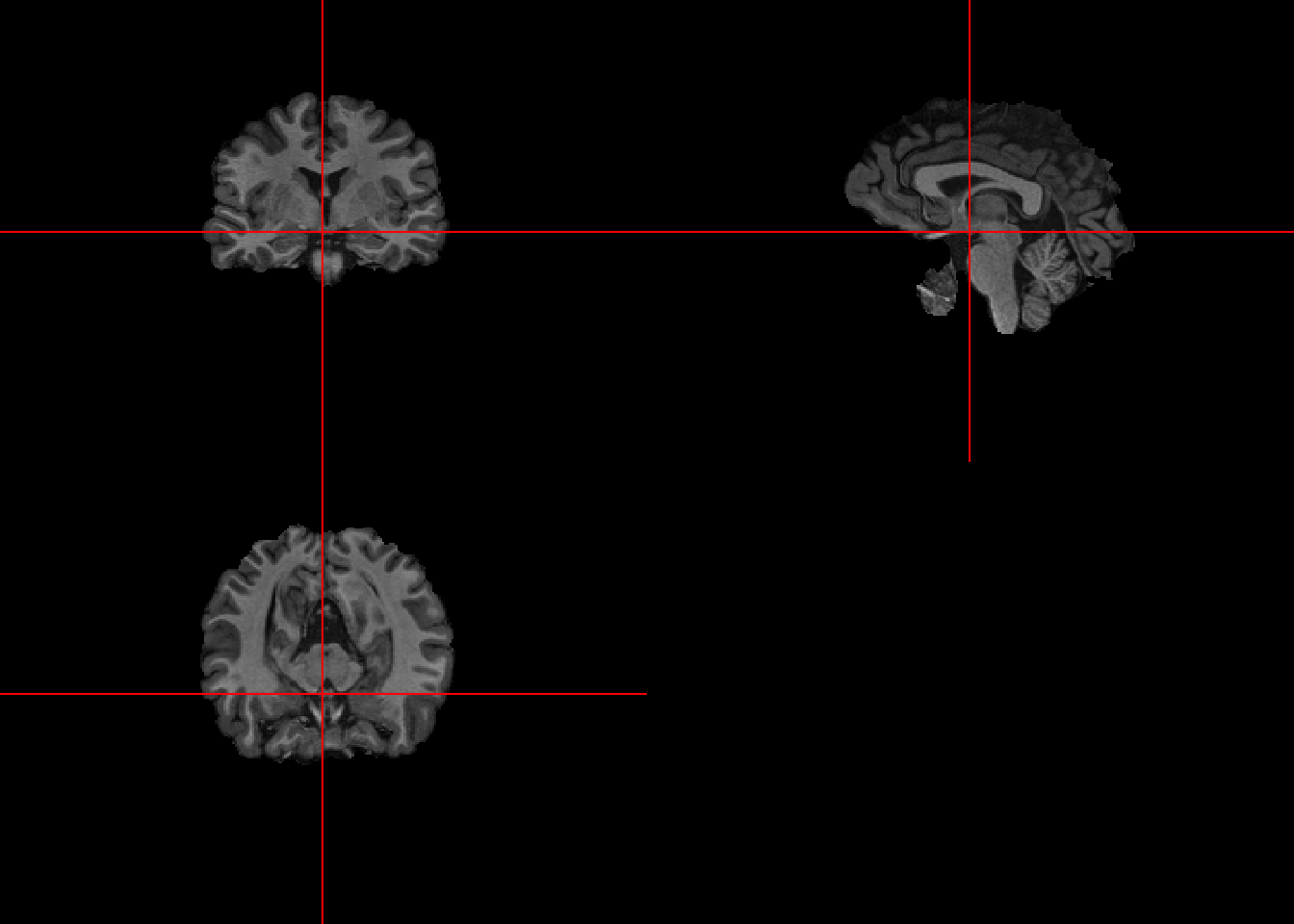

orthographic(bet2_fast_img)

8.1.2 Running FLIRT for rigid transformation

register_img = fslr::flirt(infile = bet2_fast_img,
                     reffile = template_img,
                     dof = 6, #for rigid transformation
                     retimg = TRUE)

## Warning in get.fsl(): Setting fsl.path to /usr/local/fsl

## Warning in get.fsloutput(): Can't find FSLOUTPUTTYPE, setting to NIFTI_GZ

## FSLDIR='/usr/local/fsl'; PATH=${FSLDIR}/bin:${PATH};export PATH FSLDIR; sh "${FSLDIR}/etc/fslconf/fsl.sh"; FSLOUTPUTTYPE=NIFTI_GZ; export FSLOUTPUTTYPE; ${FSLDIR}/bin/flirt -in "/private/var/folders/wk/jzm8xd01507b9nx7qmycj7700000gn/T/RtmpBiaW4A/file2dfa598620f5.nii.gz" -ref "/private/var/folders/wk/jzm8xd01507b9nx7qmycj7700000gn/T/RtmpBiaW4A/file2dfa74dde2bd.nii.gz" -out "/var/folders/wk/jzm8xd01507b9nx7qmycj7700000gn/T//RtmpBiaW4A/file2dfa4f283844" -dof 6 -omat "/var/folders/wk/jzm8xd01507b9nx7qmycj7700000gn/T//RtmpBiaW4A/file2dfa1351223c.mat"

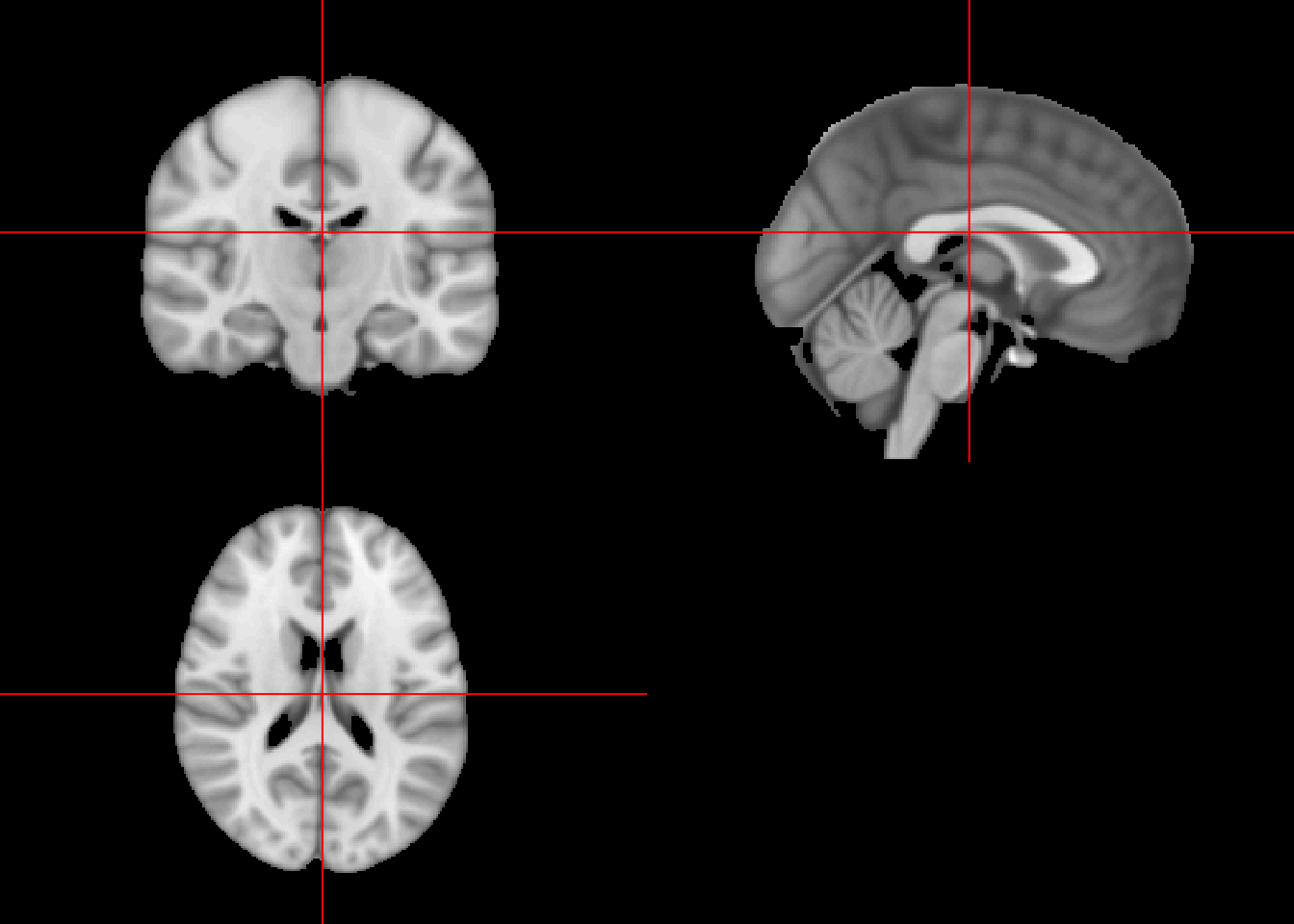

orthographic(template_img)

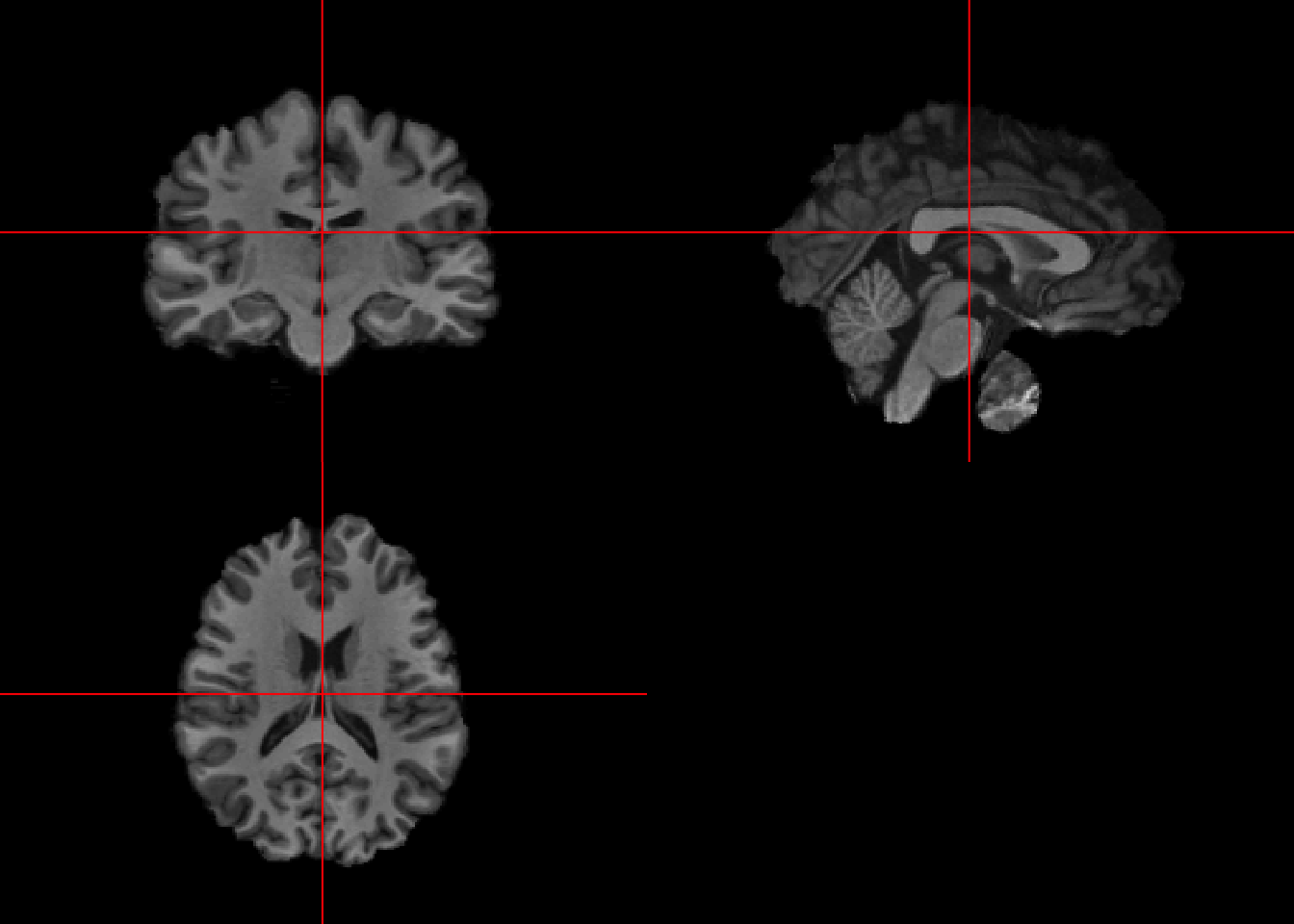

orthographic(register_img)
